# MARTIAN MOLECULES... Exploring Chemistry  CUT AND PASTE THE SOURCE CODE BELOW TO AN OPEN FILE WINDOW IN IDLE

AND SAVE IT AS

ballpack.py

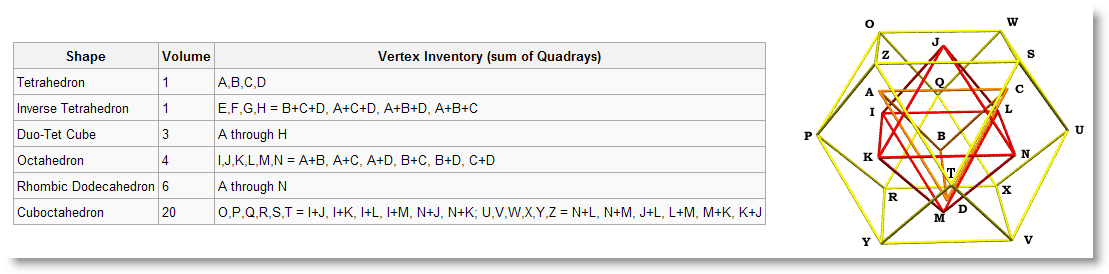

 ```""" ballpack.py by K. Urner for Saturday Academy, Martian Math Summer camp 2010 @ Reed College http://www.4dsolutions.net/ocn/satacad/martianmath/ """ from stickworks import Qray, Edge, getedges from visual import * def setscene ( ): """set the stage for our little drama""" scene2 = display(title='Drawing a 12-around-1 packing', fullscreen= True, autoscale = False, background=color.white, scale = vector(0.1, 0.1, 0.1)) return scene2 def ccp( ): """ draw 12 spheres around 1 """ scene = setscene( ) scene.select( ) # 26 points in space (as sums of Qrays) a, b, c, d = Qray((1,0,0,0)), Qray((0,1,0,0)), Qray((0,0,1,0)), Qray((0,0,0,1)) e, f, g, h = -a, -b, -c, d i,j,k,l,m,n = a+b, a+c, a+d, b+c, b+d, c+d o,p,q,r,s,t = i+j, i+k, i+l, i+m, n+j, n+k u,v,w,x,y,z = n+l, n+m, j+l, l+m, m+k, k+j # 12 around... for locus in [o,p,q,r,s,t,u,v,w,x,y,z]: ball = sphere(pos = locus.xyz, color = color.orange, radius = 0.5) # 1 at the center (nuclear ball) center = sphere(pos = (0,0,0), color = color.red, radius = 0.5) print "OK, done..." return if __name__ == "__main__": ccp( ) ```  PREV | NEXT | TOC | HOME
